AUDI C7 S6 S7 4.0T HIGH FLOW E85 Flex Fuel Line kit - Engine Bay Line Kit - Parallel Feed to each HPFP - SENSOR NOT INCLUDED

AUDI C7 S6 S7 4.0T HIGH FLOW E85 Flex Fuel Line kit - Engine Bay Line Kit - Parallel Feed to each HPFP - SENSOR NOT INCLUDED

40T-Performance
SKU:
C7-4.0T-FLEXFUELKIT
$295.00
$369.99
(You save $74.99 )
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

Take your Audi S7 4.0T to the next level with this 40TPerformance Flex fuel engine bay kit!

New Release & designed specifically for the Audi S6 & S7 4.0T 2012-2019 (C7 Chassis)

At the heart of this kit is a 6061 billet flex fuel sensor bypass module.  With the internal parallel path it allows you to eliminate ALL restriction from running the flex fuel sensor in the feed where a maximum of flow is required.  Lines are PTFE with a stainless braided lining to have outstanding abrasion performance and compatible with ethanol and never deteriorate and contaminate the fuel system like rubber based lines.

This kit is available and will ship out same day the order is placed and it will be recieved 2 to 3 business days later via USPS Priority Mail (USA)


How does this bypass work?

It works by creating a parallel dual path for the fuel and completely eliminating the restriction from the e85 internal sensor components.

The 2 pathways: First, the straight through and second, the parallel "bypass" pathway for the flex fuel sensor allowing it to read the e85 content in the fuel.

With e85 having lower chemical energy, it will require about 30% more fuel volume compard to gasoline to flow through the fuel feed lines to the fuel rails.  The motor wants MORE fuel not a more restrictive fuel feed by installing an e85 flex fuel sensor directly in-line on to the stock fuel line.  This is especially critical when installing the flex fuel sensor on the feed size of the fuel system.

For the skeptics that feel a flex fuel sensor is not a restriction - see the cross-section of e85 sensor internal parts - yes, this does limit fuel flow significantly, especially when running a tune with higher boost and an increase of fuel compounded with 30% of fuel flow required to run e85.  See photos

What sensor do i need to get?:

Works with most types of e85 sensors with tube diameter of 9.5mm and end-to-end length of 95mm
This includes the GM 13577429, GM 13577379, GM 92254793, GM 13507129, Continental, VDO, AEM 30-2200, Innovate 3907
*gm 13577429 is what we used as its the most compact*
*For longer sensors that are 105mm in length, purchase the spacer adapter kit >> https://turboboostleaktesters.com/spacer-for-40t-performance-e85-flex-fuel-sensor-bypass-module-9-5mm-spacer/

Features:
Supports fuel for Stage 4+ Modifications, up to 1000HP
All Hoses are factory crimped ready to go for an easy installation
Fully reversible to revert back to stock
Durability Tested on shop car.  Has been issue free for 11 months.
Direct Customer Support - If you have any issues reach out direct by calling or texting 248-403-8512
One Year Warranty - just call or text if the kit has any production defects

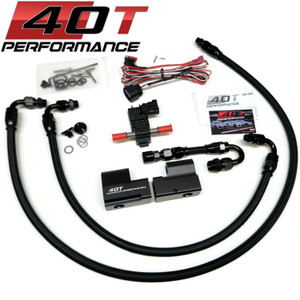

What is Included?
**DOES NOT INCLUDE THE SENSOR
- Bypass Module - 6061 T-6 CNC Machined and Anodized, Buna-N O-rings, Assembly hardware, Allen tool & spare seals
- Short J feed hose from factory quick connect to Bypass Module
- Passenger side HPFP PTFE SS Braided feed line from Bypass Module to HPFP
- Driver side HPFP PTFE SS Braided feed line from Bypass Module to HPFP
- Passenger side HPFP plug

Requirements:
A flex fuel sensor is required for this kit and not included
DS1 or other software tuning to read the flex sensor and apply fuel scaling
*Installer will need to isolate the lines leading from fuel tank feed to engine bay to alleviate any noticeable vibration (usually around 1200 rpm).  Small sections of rubber hose or foam are good isolators.

OVERVIEW & INSTALL VIDEO LINK HERE >> https://www.youtube.com/watch?v=A0vvIbzPLY0



For larger quantity orders feel free to reach out for discount code

Ships worldwide
